4 Cutting-Edge Building Materials Used For Structures Of Tomorrow

Building materials are at the core of building a structure. From building with concrete to steel, glass to plastic and wood to bricks; several materials are available for construction. But do you about the next generation materials? Yes, a wide range of materials are discovered for repurposing the old ones to create thinner, smoother and curvier structures of tomorrow.

    In the 20th century, concrete was the preliminary material used for structural construction. But today, advancement in technology and construction has made it possible to build structures that are extraordinarily splendid and one of their kind using several. All thanks to the discovery of modern materials; buildings in the near future shall be fascinating than ever. So, let's have a look at these new generation building materials:

    1. Smart Glass:

    As the name suggests, the material comes with unique features and characteristics to make it ‘smart’ enough and control the flow of natural light inside the building. There are several kinds of smart glasses:

    • Self-cleaning: This type of smart glass is coated with micro-level, non-stick coating or UV activated catalyst. It helps in cutting oils of grease marks into carbon dioxide and water.

    • Solar Sensitive: This type of glasses are sensitive to sunlight. They darken when the sunlight increases to reduce the glare and control temperature inside.

    • Photochromatic Glass: This type of glass allows only certain amount of light to pass through it. The energy from sunlight gets scattered into random positions of the glass and blocks a substantial amount of light.

    • Electrochromic Glass: This type of glass is activated when a current is run through them. On activation, they darken after few minutes to block about half of the natural light through them.

    2. Metal Sponges:

    Skyscrapers are constructed in huge numbers today as the availability of land has reduced with the increase in population. With building tall skyscrapers, there comes a responsibility to make it stable and rigid enough so that it can withstand external as well as internal forces acting on it. Luckily, materials like ‘metal sponges' comes to rescue when you want to provide strength to tall structures.

    In 2011, metal sponges came into picture by the name ‘micro-lattice'. Researchers developed this material by depositing metal onto a polymer framework which then gets etched away. These sponges possess a special characteristic of regaining their original shape after being compressed to nearly half of their size. They act as shock absorbers providing strength to skyscrapers. This material is a lightest solid building material in existence.

    3. Wood & Timber:

    Till now, wood was used as a construction material for creating furniture, doors, and windows; but using it for creating an entire building is pretty much a new concept. This is a new trend where designers are using wood with softwood timber to build buildings. In Melbourne and Bergen, buildings with 10 to 14 stories are constructed purely from laminate wood.

Apart from these, there are several discoveries made in the construction materials to reform the way buildings are built today. Making buildings with these materials is as important as the Structural Analysis Design. Structural design and plan are responsible for strength and stability of a structure. A sustainable structure is built only with proper structural analysis design.

We are providing Structural CAD Drafting:

    Design and drafting being the core services offered by Steel Construction Detailing Pvt. Ltd., reliable structural analysis design is what we offer. We provide standard Structural CAD Drafting and 3d Steel Structural Design Services. Our designers and engineers are experienced enough to customize solutions as per the client needs.

If you want to get more information on the services provided by us, please visit our website. For any query regarding the services offered, contact us.

How To Choose Perfect Staircase And Handrail Designs?

Staircases and handrails are an integral part of the building design. It is more than an element that connects different heights. It can become the decorative attraction of your house with just a few steps and designs. There are several styles of stair designs, material, and shapes, as well as sizes.

     Stair Handrail Design staircase design depends on a number of factors including its style, materials used, space available, and overall style of your house. There are several different designs available for staircases including modern, classic, rustic and artistic that go very well in the interior as well as the exterior of the building.

Staircase Design Forms:

The staircase designs can be classified into following four types:

    • Linear or Single Stage
    • Stairs with a ‘U’ shape
    • Stairs with an ‘L' shape
    • Oblique or circular shape

 Each of the types requires a different set of parameters, for example, in some cases a rest stop is mandatory; while in other forms like circular shape, the steps are continuous.

Standard Measurements:

    A standard measurement of a staircase step is approximately 29 cm in length (where the foot is placed) and 17 cm in height (counter). These measurements change according to the height of the ceiling of the house.

How to choose a Staircase Design?

    As mentioned in the introduction, the designs depend on several factors like style, space, dimension, and decoration. Apart from these, security and functionality are the two factors that need to be taken care of. Here are few tips that may help you in deciding the designs for your next project:

    1. A staircase design should at least 80 cm wide with an angle less than 42 degrees.
    2. It is advisable to use the handrail when the steps are wider than one meter.
    3. For modern designs, both glass and metal are used as a material to give a light aesthetic appearance.
    4. Helical or cylindrical stairs can be used when there is little space available for variation.
    5. A cylindrical stair is not appropriate if there is a requirement to transfer large or huge objects from ground to top floor.
    6. If space is an issue in your building, the space under the staircases can be utilized. Also these days, steps itself can be used as drawers so as to create a good room for storing things. Take these staircase designs into consideration if your house style is modern.
    7. Dimension needs to be taken care of well. If the height considered for staircase is large then stair with breaks are recommended. It the height is small, consider using modern stairs without breaks.

Options for Handrail Designs:

    1. Illuminated Design: The handrails with a backlit LED lighting is a good idea to give a dynamic appearance to space.

    2. Original Handrail Design: The originality of the handrail can be maintained by defining a particular shape for it. When the handrails go in one shape and material without any joints, the finish is homogeneous to create a powerful impact.

    3. Metal Handrail: Metals like steel, aluminum, copper, etc give a very modern appearance to the handrails. The metals can be customized to any shape and hence they are the best kind when the customers want a unique design.

    4. Wooden Handrail: Wood is the best option when you want to give a classic type of handrail to your staircases.

We are offering Staircases And Handrails Services:

    Steel Construction Detailing Pvt. Ltd. is offering Stair Handrail Design Services in the field of engineering. Our staircase and handrail designs include Stair Handrail Shop Drawing Services, staircase shop drawings and more for its effective fabrication. We are not only limited to these designs but also provide design services in the field of architecture, structure, and MEP.

For more details on the services provided by us, please visit our website. Have any query to ask? Feel free to contact us with your queries.

What Is Scan To BIM? What Are Its Benefits?

AEC industry is consistently adopting innovative techniques since years to enhance its productivity. One such technology is Laser Scan to BIM. Application of Scan to BIM is increasing for renovation projects. Data is derived from 3D Laser Scanning and 3D BIM models are generated using this data.

So what is this laser scan to BIM technology? Let’s understand it in detail.

Laser scan to BIM:

The laser scan to BIM process can be split into five consecutive steps:

    1. Survey Control
    2. Laser Scanning
    3. Process
    4. Model
    5. Information

    • Survey Control:

    3D survey control markers are set up and co-ordinated on site before the actual scanning process begins. This allows the survey team members to track the information accurately.

    • Laser Scanning:

    The actual process of collecting data begins at this stage. For achieving this, 3D laser scanners are used that will relate to the 3D survey control markers. A Point Cloud Data is generated at this stage.

    • Process:

    The point cloud data collected by scanning is regularly downloaded and processed at certain intervals. This downloaded data is then compared to the survey control so that the differences can be highlighted.

    • Model:

    When the site data is thoroughly checked and verified, it is then submitted to the modelers to build a model for the representation of the data. In this phase, a model for the actual structure is derived.

    • Information:

    Once everything is done, the final step is to include all the necessary information required by the clients.

Now let’s understand the benefits of using scan to BIM technology:

Benefits of Scan to BIM technology:

    1. Laser scan to BIM helps to achieve transparency, communication, and collaboration.
    2. The 3D model derived from this technique provides greater performance, quality assurance, and reliability.
    3. This technology helps in reducing the budget to a great extent.
    4. Any alteration in the model can be made with ease and it also helps decision makers to take decisions quickly.
    5. It allows for creating sustainable structures.
    6. Mistakes can be avoided at the early stages of the project lifecycle thus reducing the costs of rework.

Software Benefits:

    1. It allows creating 2D drawings from 3D point cloud data.
    2. It has set of inbuilt tools to create elements like walls, columns, and pipes.
    3. Renovating an old structure is way too easy using this approach.
    4. The dimensions collected using scanning are more accurate and precise to give improved results.
    5. It allows clash detection and eradication.

We are providing BIM services:

    Steel Construction Detailing Pvt. Ltd. is a leading CAD services provider offering its services for architectural, structural, and MEP projects. Our design services are accurate and quality approved to give acute satisfaction to our clients. We are also providing BIM services using tools like Revit.

To know more about who we are and what we do, please visit our website. If you have any query regarding our services, feel free to mail us. Our consultants will guide you through the best possible solution.

Why Are Steel Detailing Services Required For Construction?

Steel detailing services are necessary for engineering operations and the construction of steel structures. To build a steel structure with an acute level of precision and accuracy, documents like detailed drawings, reports, plans, and illustrations are required. The detailed drawings make it easy for the engineers to execute certain work with ease.

Steel detailing is useful and beneficial in following a number of ways:

    • Steel detailing forms a link between the engineers, designers, fabricators and all other professional like contractors and subcontractors.
    • Steel detailing and Miscellaneous Detailing make sure that the final structure is meeting all the required parameters.
    • It not only provides quality to the products but also helps in effective management of the resources.
    • This is the reason why engineers, fabricators, and constructors put stress on detailing.

    Steel detailing is required in AEC ( architecture, engineering, and construction ) industries for developing the building, bridges, skyscrapers, residences, commercial buildings, industries and lot more. When the structural shop drawings and fabrication drawings are prepared for the construction of structures, it requires following steel detailing standards like American Institute of Steel Construction (AISC), British Standard Codes, Norwegian Steel Association, Euro Codes or other similar standards.

    The responsibility of creating all these drawings and maintaining the standards lies on the steel detailers. However, the responsibilities of the structural detailers have changed from past few years with the advancement in the construction industry. Digital revolution has played a significant role in creating these changes for the betterment.

Changed responsibilities of detailers with the changing trends:

     The roles of structural detailer are becoming complex and more affected by the upcoming trends in the industry. A detailer is not only required to have basic knowledge of the CAD software and Revit 3D model but also have few additional skills to perform better. He needs to be aware of following things:

    1. Collaboration models for designing
    2. BIM technology for virtual representation of designs
    3. Item tracking an related field services
    4. Erection sequencing and scheduling
    5. Transportation and galvanizing

Benefits of Steel detailing services from Steel Construction Detailing Pvt. Ltd.  :

    • Steel Construction Detailing Pvt. Ltd. is offering steel detailing service to clients around the globe.
    • Our company employs engineers and detailers with a certified course in civil engineering and structural designs.
    • The detailers at our company are equipped with technical expertise and experience in  Rebar steel detailing and Miscellaneous Detailing.
    • Our team of professionals has sound experience in analyzing the problems thoroughly to give unique and enhanced solutions to have a positive impact on the project progress.
    • The engineers and detailers here have knowledge of technology like Revit 3D model to offer model-based solutions.
    • The core competencies of our company lie in giving on-time deliverables, one-stop solution for all your structural needs, cost savings with an appropriate budget.

For more details on who we are and what we do, please visit our website. If you have any query regarding our services, please feel free to contact us through the mail.

What Are The Benefits Of Model-Based Steel Detailing?

Since last decade, steel detailing business is dealing with increased competitive pressure. Some of the challenges faced by steel detailing organizations are mentioned below:
    • Clients are under pressure to deliver the project rapidly at lower prices.
    • AEC professionals are largely scattered due to increased outsourcing of engineering services.
    • Shortage of skilled laborers leading to a difficulty in hiring qualified staff.
    • Migration to BIM or Building Information Modeling is increasing as it has become a prerequisite in most of the new business. However, migrating to model-based steel detailing software is expensive.

    To overcome the challenges mentioned above, steel detailing industry is moving towards a model based detailing solutions like Autodesk Advance Steel. Advance steel allows an information-rich model-based workflow to give several benefits. It includes libraries of materials, sections and other components with inbuilt standards and codes from around the world to help you cater any kind of project needs. It allows for efficient modeling of:
    • Bracings, side rails, roofs, common frames
    • Folded plates
    • Welded, tapered and curved beams
    • Steelworks like railings, ladders, and stairs
Let’s see some of the benefits Advance Steel software offers for more enhanced Structural Steel Detailing.
Advantages of using Advance Steel Software for Detailing-
    1. Automate Detailing:
    Advance Steel allows you to automatically generate shop drawings, general arrangement drawings, and assembly drawings. Additionally, these drawings can be created as per the needs as it offers the software has a feature of customization.
    Design changes can be easily accommodated during structural steel detailing process. When you update the model, all other deliverables also get updated automatically from shop drawings to NC data. The updated drawings are uploaded to the revision clouds for an integrated revision control.

    2. Reduced Inconsistencies:
    The model-based approach of this software allows reducing redundant data by removing errors. It also reduces the waste created in fabrication shops and fields as the information is derived from a consistent information-rich steel model. It integrates a material information system software to keep project information up to date.

    3. Enhanced Interoperability:
    Model-based detailing process engages in BIM workflow easily. So one can use 3D models to collaborate with the architects and designers more effectively. There is no manual recreation of data and therefore the risks of errors reduce.
    With this interoperability, the detailers can import the 3D models from the structural engineers as a starting point of their CAD steel detailing. This enables to compare the original and updated models. It also gives alerts about the creation, modification, and deletion of the structural members. Further, the 3D models can be exported to the contractors for project coordination. The ability to minimize the rework due to any changes by design team is the best interoperability advantage.

We are offering quality detailing services:
    Steel Construction Detailing Pvt. Ltd. is offering quality detailing services from experts who are skilled and experienced enough to give you nothing but the best solutions.   Our detailing services include Joist Detailing, Structural steel detailing, CAD steel detailing and many more with a precision that is unmatchable. We leave a remark of satisfaction and trust among our clients by fulfilling their requirements and maintaining a healthy relationship.
For more queries regarding our services, please feel free to contact us. To avail, any of our services quote now.

What Is The Process Of Steel Fabrication? Explained

Steel fabrication is a process of manufacturing steel components for its specific usage in steel structures. For an efficient fabrication, it is important to lay out steel structure fabrication drawing. Without this drawing, a structure cannot be manufactured. A steel structure fabrication drawing is a type of detailed drawing that mentions material parts list to identify all the materials used. Also sometimes, it is an assembly drawing which is used to assemble all the items together.

    Steel fabrication is a critical process that requires specialized skills, knowledge, and resources to complete the work successfully. Following list shows the process adopted by a fabricator to manufacture steel beams, components, and equipment:

    1. Ideation:

    This step can be as contemporary or creative as the client wishes it to be. The clients have the liberty to present their ideas when they hire fabricators to give custom solutions. Whether clients need handcrafted ornamental rails or standard ladders, it is the job of the fabricator to listen and implement these ideas into work.

    2. Blueprints/Drawing Creation:

    After taking requirements into consideration, the fabricator will draw blueprints for the same. They use special software for this. While creating these drawings few things are taken care of including code compliance, standards, and requirements of the clients in mind.

    3. Shop Drawings Creation:

    After the creation of blueprints, the fabricator converts blueprints into structural steel shop drawings for completing the order. These drawings are to be made within deadlines and budget. Shop drawings consist of fabrication details required by fabricators to manufacture the product.

    4. Cut and Drill:

    The fabricator uses above-mentioned fabrication drawings to manufacture the steel components. And the first step is to cut and drill steel beams using tools like saws, shears, lasers, notches, punches, and plasmas. Use of approved quality tools will yield you high-quality results quickly.

    5. Piece Etching:

    The next step is to carve each piece with a unique number and plate location. This will help to assemble the components together faster with accuracy and quality, eliminating delays.

    6. Assembling Components:

    Once etching is complete, the components are assembled and welded together by the fabrication team. This is critical because the assembly pieces must be correctly matched in accordance with the specification.

    7. Custom Fabrication:

    The clients may need to custom specific parts of steel structures if the requirements do not match the standard size and look. In this case, the fabricator will make custom parts at this stage to meet the specific need of structure or product.

    8. Assembly Completion:

    The next step is to complete the assembly ensuring all the parts are present and functioning properly.  No changes are made at this stage except for the mistakes made.

    9. Shipping Preparation:

    After successful assembly, the fabrication team will start preparing for either finishing or shipment. The fabricators are required to perform this step quickly so that erection on site begins at a faster speed. If the clients have a special demand for paints, coating, sandblasting or other finishing needs, then it is applied at last. The finishings are also applied in accordance with the standards and codes laid by the country.

We create steel structure fabrication drawing:

    As already discussed above, fabrication requires a quality set of fabrication drawings for successful completion. Steel Construction Detailing Pvt. Ltd. is one of the reputed companies in AEC industry offering quality and standard Steel Fabrication Detailing services. Our steel structure fabrication drawing and structural steel shop drawings are error-free which makes it easy to fabricate a product/structure. Our clients can always rely on the integrity we maintain throughout the project lifecycle.

For any query regarding our services, please feel free to contact us. Please visit our site to know more about who we are and what services we offer.

Top 4 Advantages of Pre-Engineered Buildings

What is a Pre Engineered Building?

    A pre-engineered building(PEB) is the one which is engineered in a factory and assembled on site. Generally, pre-engineered buildings are steel structures. These Pre Engineered Steel Buildings are developed by a PEB manufacturer using the best available raw materials and fabrication techniques to satisfy the aesthetic as well as structural needs.

    PEB concept is generally used to build industrial buildings, metro stations, and warehouses. The purpose of PEBs is to offer a cost-effective building approach to the customers. Though it is not a perfect solution for every structural project, it is very beneficial and popular approach for building warehouses, canopies, bridges, and factories.

    When it comes to constructing a new building, there are a number of options available. But a pre-engineered building is a better choice in certain cases. Take a look at why it is a good option.

Advantages of a Pre Engineered Building:

    1. Customization:

    A Pre Engineered Building Design is likely to work best for applications like backyard sheds but otherwise, a customized structure is considerable. Some features of pre-engineered building design allow you to incorporate customized elements that satisfy both functional and aesthetic demands. With this feature, one can choose preferable dimensions, colors, and components.

    • Components:

    In case of interior elements, one can personalize insulation, windows, wall lights and skylights. For exterior accessories, choices available are roll-up doors, bi-fold doors, and sectional overhead doors.

    • Color schemes:

    There are also choices available for choosing the right color for your building. The varieties include monochromatic, complementary and analogous. Monochromatic colors are a shade of tint and its variations. Complementary refers to colors that are in a cross to each other in color wheel, as analogous refers to ones that are adjacent.

    2. Versatile:

    As already discussed above, a building can be optimized for a number of categories from colors to individual components. This makes pre-engineered buildings versatile in nature to be used for multiple applications. Examples of these are as follows:

    • Auto repair shops: It is possible to create a compact auto shop while still maintaining an effective workspace for the mechanics.

    • Warehouses: Pre Engineered Steel Buildings make it easy to engineer a warehouse space with a total availability of storage space.

    • Garages: A proper usage of Pre Engineered Building Detailing can ensure that garages are tailored for clients personally.

    3. Durability:

    A pre-engineered building might be a source of investment for many, especially if it’s for primary residence purpose. But if you opt for a cheaper building, you might be at a huge loss as the strength and durability of the buildings are compromised. On the contrary, pre-engineered buildings are more durable to withstand forces for a longer time.

    Also, a pre-engineered building has strong primary framing. Even though they are placed on concrete slabs, the framing which is base for the structural foundation is unmatchable.

    4. Speedy Construction:

    A pre-engineered building does not require any welding or bolting and hence they can be erected at a greater speed. Some of the pre-processes are done at the factory itself making it easy to install the building components.

    With this concept, one can save up to 50% cost and time in comparison to traditional construction techniques.

Services offered by us:

    Steel Construction Detailing Pvt. Ltd is offering Pre Engineered Building Design services. Our designs are well developed by experts who keep a quality check to ensure errors are not generated. Pre Engineered Steel Buildings require efficient Pre Engineered Building Detailing so as to incorporate all the advantages mentioned above and we exactly do the same.

For any query regarding our services, please contact us. Our experts will be happy to offer the best possible solutions.

What Makes Rebar A Good Supplement of Concrete?

Concrete is the strongest material when it comes to compression. Anyone related to construction industry knows this fact very well. But what about tensile strength? Is concrete equally strong when it comes to tensile strength? The answer is no. Compression is the force required to squeeze something together, whereas, tension refers to the force required to pull something apart. Concrete is a very good material to handle compression forces but weak when it comes to tensile forces.

So, how to provide tensile strength in a concrete structure? The answer is simple; put rebar in concrete. Rebar is a commonly used name for reinforcing steel bar inducing tensile strength in concrete. It is formed from different grades and alloys of the steel. Rebar is manufactured with ridges so that concrete can easily adhere to it when poured upon. Rebar has several characteristics and one of them is corrosion resistance. Due to this property, rebar is widely used in constructing buildings.

Strength of Rebar

As mentioned above, rebar offers tensile strength to the concrete. Apart from this, it has several other advantages that make it a better choice to be used along with the concrete. And these are:

    • Durability: Rebar is extremely durable which means it does not break easily when external forces are applied to it. It does not get affected by the climate changes and this is the reason why rebar structures have a longer life. Rebar can also withstand its original shape under fire.

    • Resistance to Corrosion: Resistance to corrosion and rust is a very important physical property that a material should possess and rebar has it. Rebar does not get affected even by heavy rains. Not only rains, rebar is resistant to chlorine as well making it a good choice for reservoirs and dams.

    • Reduced Thickness: The thickness of rebar can be reduced to a great extent. When used in concrete, the thickness of the concrete can also be reduced for driveways and garage floors. Concrete is a composite mixture of materials like ashes, aggregates, cement and more. Use of such material adds to the thickness of the concrete. But when rebar is used, it not only makes the slabs thinner but also provides strength to it.

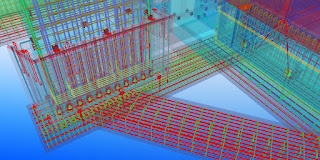

Rebar Shop Drawings: Inevitable For Quality Construction

Rebar offers more strength to concrete as already discussed above. But also important are the rebar shop drawings to simplify the construction project. Rebar shop drawings are produced by contractors and subcontractors to explain fabrication and installation process. There are several important points one needs to consider while getting Rebar Drawing Service:

    • Both 2D and 3D drawings are available for use. But one needs to decide between the two based on project preference. Both the drawings have their own advantages and disadvantages, and so for what reason they are used really matters.

    • Reports are comprehensive and they can be obtained along with the rebar shop drawings with details on scheduling.

    • Contractors working with rebar shop drawings may develop questions from time to time. To avoid any confusion or guesswork, annotations are also provided on request.

We are providing rebar shop drawing service:

Steel Construction Detailing Pvt. Ltd. is serving clients across the globe with its quality rebar drawing service. We provide Rebar Steel Detailing, Rebar shop drawings, and other related drawings in this category. Our drawings are produced by experts who have years of experience in handling structural projects. We strive to achieve a high level of quality for client satisfaction.

If you have queries regarding our services, please feel free to contact us for more details. Our consultants are available to give you best possible solutions to your requirements.

Benefits of 3D Designs for Sheet Metal Fabrication

The use of 2D drawings is still prevailing in the Sheet Metal Fabrication industry even though 3D CAD models are introduced in the designing sector. It is a matter of fact that 2D drawings have remained successful since several decades to convey the design intent. And this is one of the reasons why designers are not switching to 3D models as they have developed familiarity with 2D since such a long time.

However, 3D CAD workflows for sheet metal fabrication can help fabricators to compete better in this advanced age. The models generated for sheet metal products consists a pool of information that can be utilized for entire product development lifecycle. This is achievable only due to the benefits provided by this new age technology.  Here’s a list of these benefits:

    1. Designing with greater flexibility:

3D offers to design with accuracy, quality, reduced rework and more flexibility. Engineers are able to come up with a promising model which is possible only with the use of tools that remove bottlenecks in the designs at an early stage.

With only fewer mouse clicks, the entire solid model is converted to sheet metal model with all the bends, chamfers and other features. This ensures that the modifications in models can be done in a short duration of time, thus, pushing the models to fabrication shops quickly. Securing client contracts becomes easy and quick as sending 3D models with a quote will benefit both the parties involved.

    2. Better collaboration:

One of the core benefits of adopting 3D approach is enhanced collaboration and communication. In the case of 2D approach, generating Steel Fabrication Drawing and Structural Shop Drawings can be a painful task. This is so because in this case, it demands greater accuracy to avoid change orders and delays at fabrication shops.

On the contrary, the 3D approach makes it easy for the designers and fabricators to communicate for a better revision and modification. A small change in the drawings penetrates throughout the models with fewer or no errors. The changes are automatically updated saving time and energy of the designers to concentrate on more complex areas.

    3. Developing better marketing materials:

3D models can be used for not only for designing and fabrication but also for marketing. With the in-built tools and engines, CAD offers high definition pictures fro sheet metal products. These pictures can be used in brochures, catalogs, sales communication with the end customers. There is no requirement for special tools to and resources to fulfill the purpose.


We are using 3D CAD-based approach:

Steel Construction Detailing Pvt. Ltd. is a leading CAD-based design service provider for all your structural, architectural, MEP and BIM requirements. We are using the latest 3D CAD software and tools to give the advantages mentioned above for generating Structural Shop Drawings, Steel Fabrication Drawing, and Sheet Metal Fabrication. We value our clients and strive to fulfill all their project needs with a high degree of efficiency. Our unmatchable quality and integrity have satisfied clients from around the world for several years.

Role of CAD in Structural Drafting

Computer Aided Designing/Drafting (CAD) is an integral part of Structural Engineering Services. This designing or drafting process is nothing but a representation of building in two dimensions. In this technically advanced age, drafting is done using computers rather than creating it manually. Initially, engineers lay out the first set of drawings which is then detailed out including all the parameters.

A Structural CAD Drafting process involves one or more following functions to be carried out by structural engineers using CAD software:

    • Drawings for foundation plan and footing
    • Bar bending schedule for Rebar
    • Detailing of stairs, handrails, slabs, roof truss and joints
    • Drawings for prestressed components

What are the benefits of structural CAD drafting over traditional methods?

    1. Data storage:

In case of manual drafting, documents are filed and stored in folders. But this is not the case with CAD drafting, as the drawings can be stored easily on the computer server. This drawing information can then be accessed as and when required. This gives a benefit of environment-friendly storage as well as reducing the risk of losing documents.

    2. 3D visualization:

3D models created using AutoCAD software allows for effective visualization. Although it can also be created manually, CAD saves a lot of time and the results generated by it are incomparable to the manual ones.

    3. Reduced revisions:

In the manual method, chances of errors are high. Compared to this, CAD generates drawings with fewer errors. Also, whenever there is a need for revision, the manual method involves erasing and creating it again. This can be simplified to a great extent using computer designs.

    4. Time-saving:

CAD allows for creating designs much faster than the manual drafting. This saves a lot of time which can be utilized for other important tasks. Also, modification done in one part can be penetrated to other parts of the models. This is not possible in manual methods. For example, if there is a mistake in one part of Steel Fabrication Drawings, one needs to erase and literally draw each line of error. The same is completed with a mouse click using CAD.


Other advantages:

    • It allows for the conversion of ordinary design drawings from jpg, pdf, png, dxf to CAD files.
    • Simplify the generation of drafting documents for structural engineers.
    • These drawings can be generated with a high level of accuracy.
    • Allows for the modifications to be made in the existing designs as well.
    • It allows estimating bill of materials (BOM) in a better way. This helps in saving extra expenses.
    • A lot of time is saved through CAD drafting compared to old traditional methods. This increases productivity and saves resources.
    • It allows for easy sharing and transferring of information between team members.

Company Synopsis:

Steel Construction Detailing Pvt. Ltd. is offering quality checked Structural Engineering Services. Our services in this area include structural CAD drafting, Steel Fabrication Drawings and other design drawings which are created by experts. We are limited to this but also offer several other services in AEC industry.

Please drop a mail or quote now to avail any of the services provided by us. To know who we are and what we do, visit our website.

6 Benefits of Hiring Building Information Modeling Services

Even though the evolution of CAD design and drafting has benefitted the AEC industry a lot, Building Information Modeling Services make it more client-friendly, errorless, and accurate. Architectural BIM Services and Structural BIM Services help architects, engineers, and other professionals achieve better workflow. Let’s dig deep into these services to understand how professionals are using this new age technology:

    1. Covers entire lifetime of a project :

While all the other services can be hired only till the project delivery, Building Information Modeling or BIM is used for the entire lifespan of the project. After project delivery, BIM services can be used for operation and maintenance of the building. The stakeholders and owners can access the available information for better decision making.

    2. Using higher dimensional models:

BIM services increase the scope of 3D CAD models with added dimensions as follows:

    • BIM offers 4D models for keeping a check on the schedule of the project.
    • It offers 5D models for completing the project with cost efficiency.
    • Also, it gives 6D models to answer questions like how, when, what and where.

This means the owner is able to get an exact idea of the product or service at the end of the project through these models.

    3. Efficient facilities management:

With BIM models, attributes can be easily attached to the components. This allows for effective facilities management. Managing and ordering equipment becomes simpler.

    4. Shared information:

BIM makes construction process effective as it allows sharing updated information that is also error-free. The stakeholders and owners thus remain updated with this shared information. A comprehensive model is linked to the central database which allows owners to access the right information at right time. They can thus take right decisions regarding their project.

    5. Effective communication:

Architectural BIM Services encourages an effective communication between the designers and clients. This is aided by the visual models provided by BIM technology. It allows for hassle-free and transparent communication. The clients can get an early insight into the project with walkthroughs and virtual models. It is also easy to communicate building’s performance and behavioral patterns to the clients.

    6. Realistic modeling:

The drawings prepared using BIM are accurate as mentioned earlier. It also generates lifelike views to get an exact idea of the final product. Thus, clients get what they see and demand. All the requirements can be communicated during the early phase of designing and a real image of it can be viewed through BIM.

 BIM Services by us:

Steel Construction Detailing Pvt. Ltd. is offering Building Information Modeling services to clients around the globe. We offer our services while keeping a quality check on it so as to receive acute satisfaction from them. Our architectural BIM and structural BIM services are sure to give a rich experience to the clients with all the above-mentioned advantages.

We provide varied services in the field designing, detailing and drafting. To know more about the services offered by us, please visit our official website.
